Q130RA-9076-AFQ | TURCK - Your Global Automation Partner
Radar Sensor
Q130RA-9076-AFQ
Order ID no. 3802368
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
65
Ambient temperature min. (°C)
-40
Antenna connection
Internal, planar
Beam angle
90° x 76°
Connector type
M12 x 1
Design
Rectangular

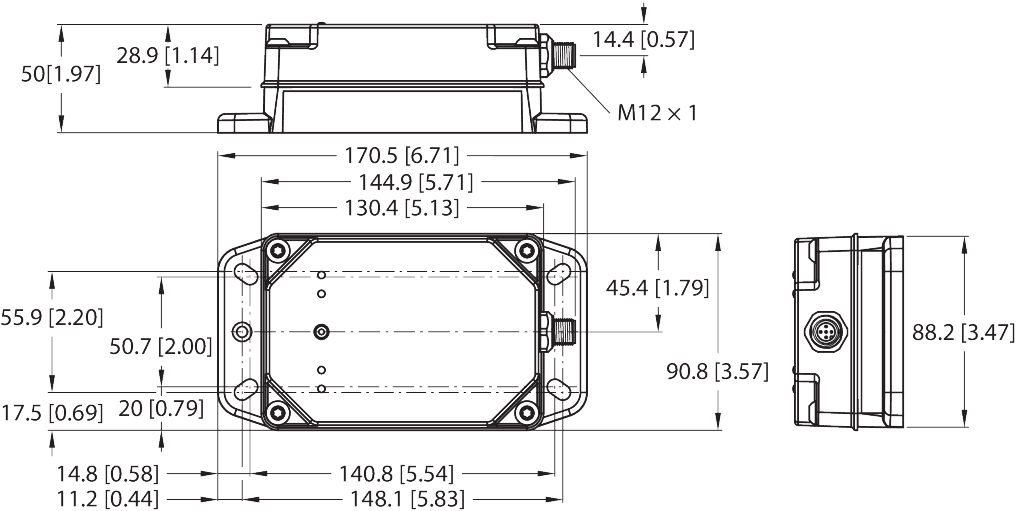

Dimensions
50 mm x 90,8 mm x 170,5 mm
Electrical connection
Connector
Frequency band
K band, ISM region
Frequency range
24.05 - 24.25 GHz
Function
Distance measurement
Function
Proximity switch
Height
170.5
Housing material
Plastic
Housing quality
ABS/Polycarbonate
Housing surface
Grey
Length
50
Max. range (mm)
24000
Operating mode
Time-of-Flight
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67
Setting option
DIP switch, Vision Software and Firmware
Special features
keep/defer
Switching element function
NO/NC programmable
Width
90.8
Key Features
Electrical connection
Connector
Output function
PNP/NPN
Beam angle
90° x 76°
Max. range (mm)
24000
In Stock
Price Group
F3
List Price
€ 992,46
