QT50R-US-AFHQ | TURCK - Your Global Automation Partner

QT50R-US-AFHQ

QT50R-US-AFHQ

Thumbnail for QT50R-US-AFHQ

Thumbnail for QT50R-US-AFHQ

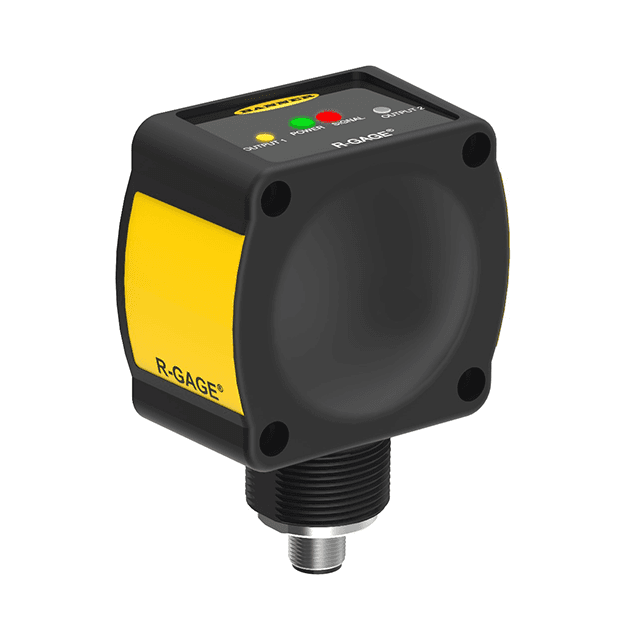

Radar Sensor

QT50R-US-AFHQ

Order ID no. 3025368

homeHome
Loading...

Ambient temperature max. (°C): 65
Ambient temperature min. (°C): -40
Antenna connection: Internal, planar
Beam angle: 90° x 76°
Connector type: M12 x 1
Design: Rectangular

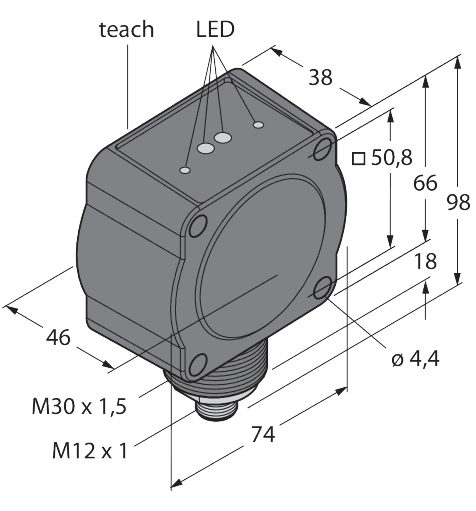

Dimensions: 46,1 mm x 74,1 mm x 99,7 mm
Electrical connection: Connector
Frequency band: K band, ISM region
Frequency range: 24.075 - 24.175 GHz
Function: Distance measurement
Function: Proximity switch
Height: 99.7
Housing material: Plastic
Housing quality: ABS/Polycarbonate
Housing surface: Black
Length: 46.1
Max. range (mm): 24000
Operating mode: Time-of-Flight
Operating voltage: DC
Output function: PNP/NPN
Protection class: IP67
Setting option: DIP switch, Vision Software and Firmware
Switching element function: NO/NC programmable
Width: 74.1

Key Features

Electrical connection: Connector
Output function: PNP/NPN
Beam angle: 90° x 76°
Max. range (mm): 24000

In Stock
Price Group	F3
List Price	€ 1.264,90
