RU300D-M30M-UPN8X2-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

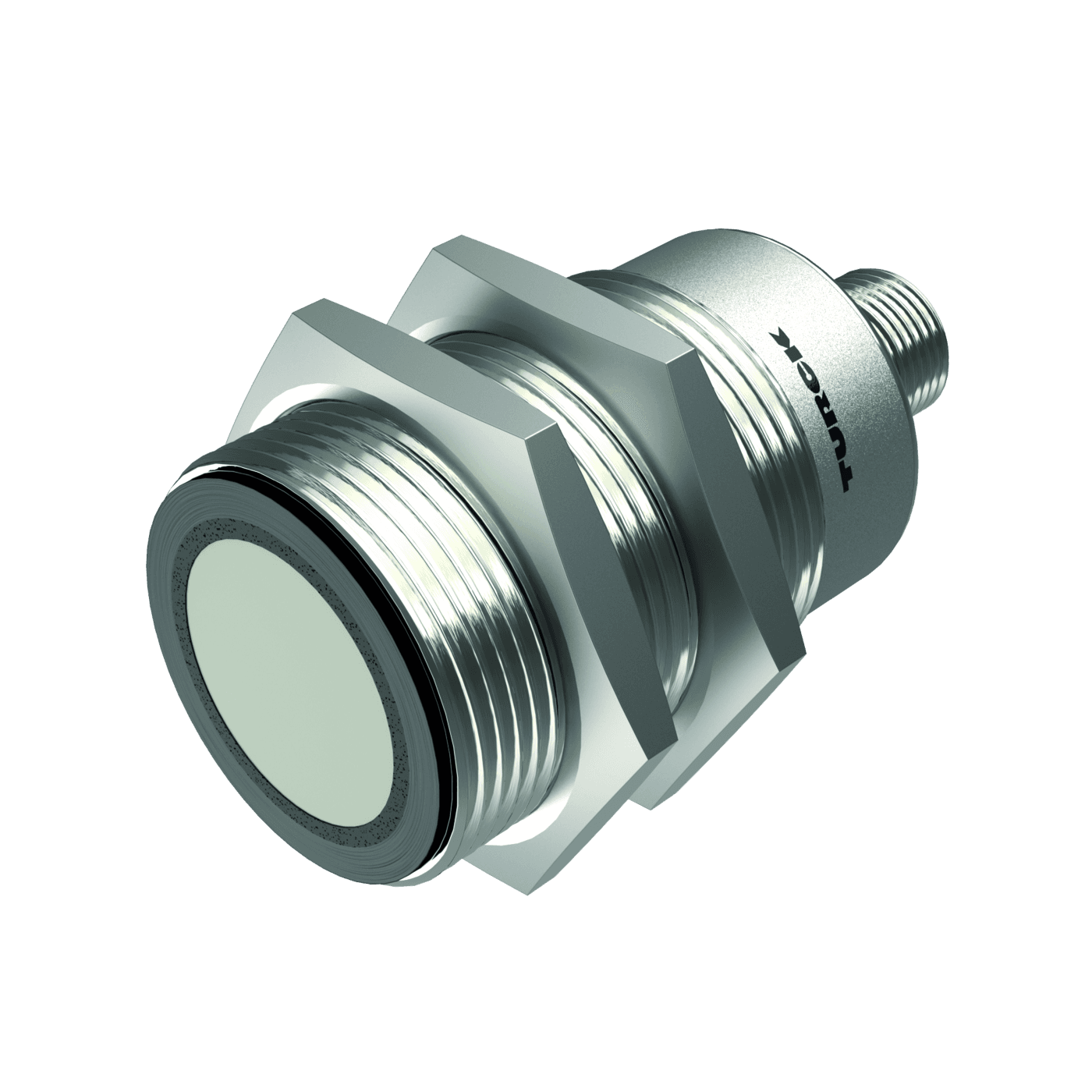

Ultrasonic sensor Diffuse-mode sensor
RU300D-M30M-UPN8X2-H1141
Order ID no. 100039012
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Communication protocol
IO-Link
Connector type
M12 x 1
Design
Threaded barrel
Detection type
contactless
Dimensions
60 mm
Electrical connection
Connector
Function
Proximity switch
Housing diameter (mm)
⌀ 30 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Length
60
Max. range (mm)
3000
Measuring principle
Ultrasonic
Medium
Bulk goods, liquids
Operating mode
Time-of-Flight
Output function
PNP/NPN
Protection class
IP67
Quality active face
Epoxy
Radiation direction
straight
Resolution
1 cm
Setting option
IO-Link, Remote Teach
Special features
Teach input
Switching element function
NO/NC
Key Features
Communication protocol
IO-Link
Electrical connection
Connector
Output function
PNP/NPN
Max. range (mm)
3000
In Stock
Price Group
D2
List Price
€ 425,26
