SAB-998AB1DXL13-Q5E | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

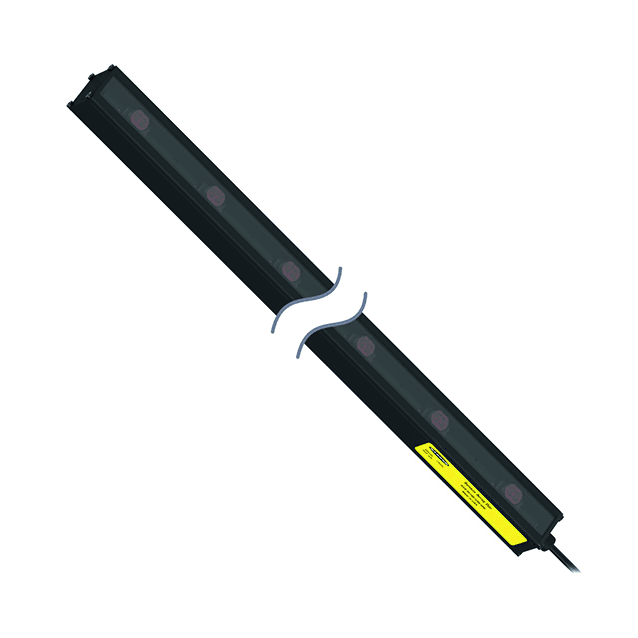

Photoelectric sensor Light Grid
SAB-998AB1DXL13-Q5E
Order ID no. 3805076
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Cascadable
No
Connector type
M12 x 1
Design
Rectangular
Dimensions
38 mm x 36 mm x 998 mm
Electrical connection
Cable with connector
Function
Diffuse mode sensor
Height
998
Housing material
Anodized aluminium
Housing quality
AL
Housing surface
Anodized
Length
38
Light type
IR
Max. range (mm)
762
Number of beams
13
Operating mode
Diffuse
Optical resolution (mm)
76.2
Output function
PNP/NPN
Protection class
IP50
Scan field (mm)
998
Switching element function
NO contact
Wavelength (nm)
940
Width
36
Key Features
Light type
IR
Function
Diffuse mode sensor
Output function
PNP/NPN
Max. range (mm)
762
In Stock
Price Group
F3
List Price
€ 1.251,00
