Magnetic Field Sensor For Pneumatic Cylinders

BIM-UNT-AP6X-0.5-RS4/S1765

Order ID no. 4685990

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.5
Connector type: M12 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

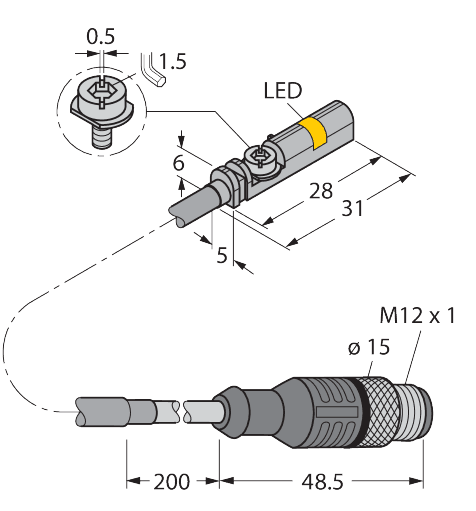

Dimensions: 28 mm x 5 mm x 6 mm
Electrical connection: Cable with connector
Height: 0
Housing material: Plastic
Housing quality: PP
Length: 0
Operating voltage: DC
Output function: PNP
Protection class: IP67
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 1
Width: 0

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
