WIM45-UNTL-LIU5X2-0.3-RS4 | TURCK - Your Global Automation Partner

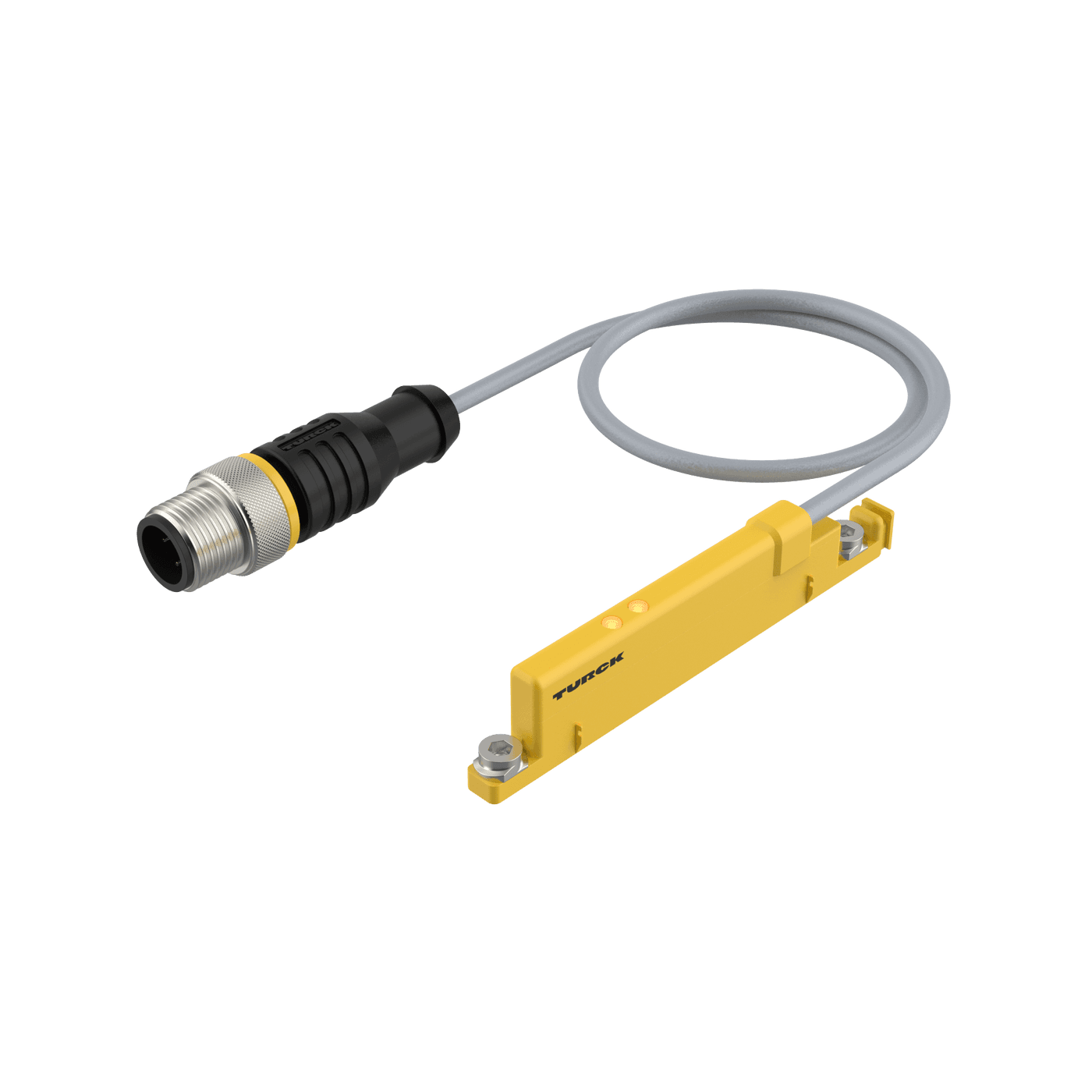

Linear position sensor For Analog Monitoring of Pneumatic Cylinders
WIM45-UNTL-LIU5X2-0.3-RS4
Order ID no. 1536621
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
0.3
Connector type
M12 x 1
Cylindrical design
T-groove cylinder

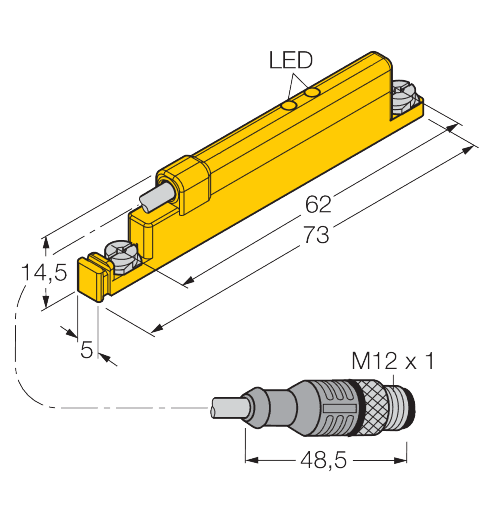

Dimensions
73 mm x 5 mm x 14,5 mm
Electrical connection
Cable with connector
Height
10
Housing material
Plastic
Housing quality
PA12-GF30
Length
100
Measuring principle
Magnetic
Measuring range
45
Operating voltage
DC
Output function
Analog output
Protection class
IP67
Resolution
0.045 mm
Width
100
Key Features
Electrical connection
Cable with connector
Cylindrical design
T-groove cylinder
Output function
Analog output
In Stock
Price Group
E1
List Price
€ 313,06
Item Total
€ 313,06
Quantity
−
+
