Magnetic Field Sensor for pneumatic cylinders (magnetic-field immune)

BIM-IKM-AZ3X2 W/KLI3

Order ID no. 1347290

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 2
Cylindrical design: Dovetail cylinder, external groove, Profile cylinder, Tie-rod cylinder
Design: Rectangular

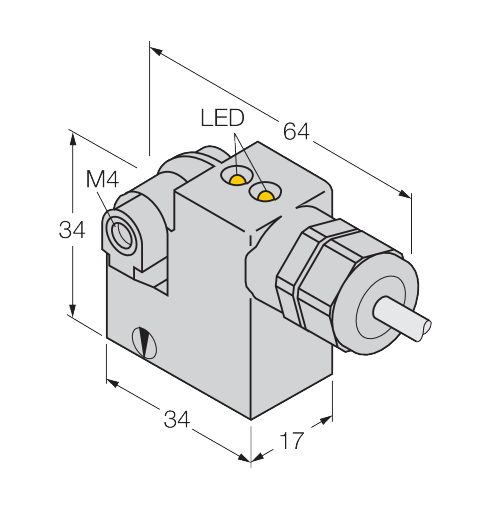

Dimensions: 34 mm x 17 mm x 34 mm
Electrical connection: Cable
Height: 20
Housing material: Metal
Housing quality: GD-Zn
Length: 190
Operating voltage: AC
Protection class: IP67
Quality active face: PA12-GF30
Switching element function: NO contact
Switching frequency (kHz): 0.02
Width: 130
