Magnetic Field Sensor For Pneumatic Cylinders

BIM-UNTK-AP7X-0.6-PSG3M/S909

Order ID no. 100054340

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Gray
Cable length (m): 0.6
Connector type: M8 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

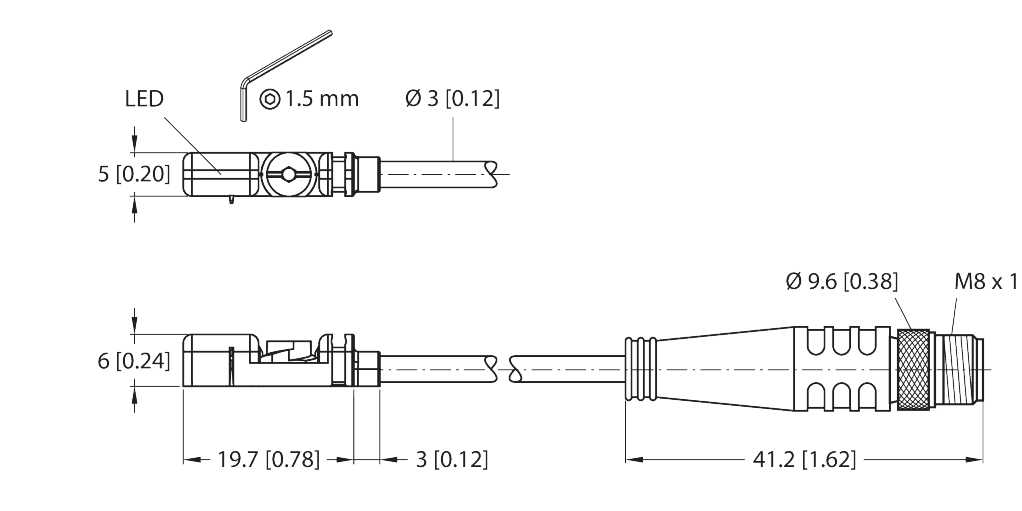

Dimensions: 19,7 mm x 5 mm x 6 mm
Electrical connection: Cable with connector
Height: 10
Housing material: Plastic
Housing quality: PP
Length: 120
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PP
Switching element function: NO contact
Switching frequency (kHz): 0.3
Width: 170

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
