Induktiver Sensor

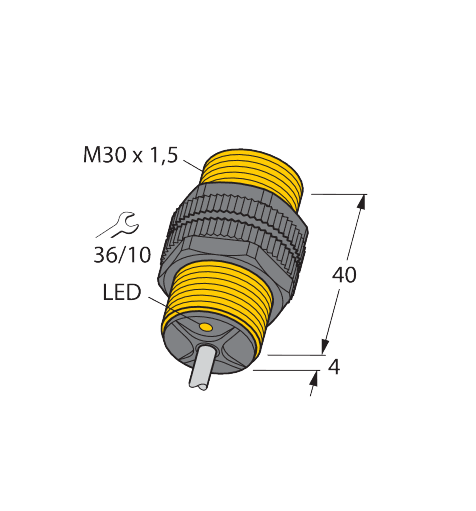

BI10-P30-Y1X 6M

Order ID no. 4040002

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 6
Design: Threaded barrel
Electrical connection: Cable
Height: 40
Housing diameter (mm): ⌀ 30 mm
Housing material: Plastic
Housing quality: PA12-GF30
Length: 160
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Switching frequency (kHz): 0.5
Width: 110
