Inductive Sensor With Increased Temperature Range

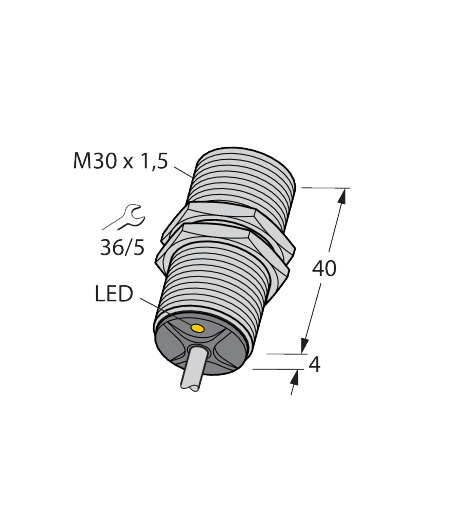

BI10-EG30-Y1X/S100 7M

Order ID no. 4012005

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable length (m): 7
Design: Threaded barrel
Electrical connection: Cable
Height: 30
Housing diameter (mm): ⌀ 30 mm
Housing material: Stainless steel
Housing quality: 1.4301 (AISI 304)
Length: 110
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Switching frequency (kHz): 0.5
Width: 110
