BI8U-EH16.5WD-AP6X-0.1-RSL4 | TURCK - Your Global Automation Partner

Inductive Sensor For harsh environments

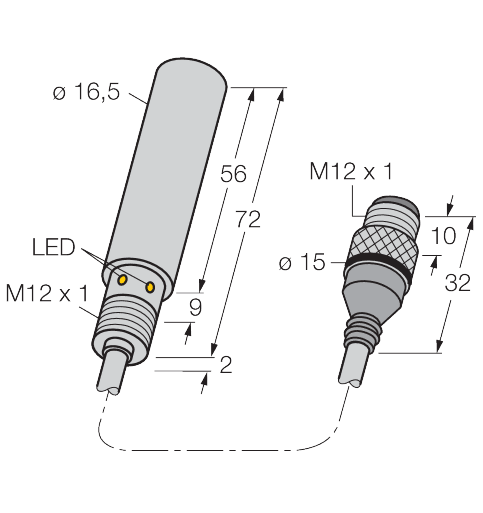

BI8U-EH16.5WD-AP6X-0.1-RSL4

Order ID no. 1634970

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Cable length (m): 0.1
Connector type: M12 x 1
Design: Smooth barrel
Electrical connection: Cable with connector
Housing diameter (mm): ⌀ 16,5 mm
Housing material: Metal
Housing quality: 1.4301 (AISI 304)
Mounting conditions: Flush
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: PA12-GF30
Rated switching distance (mm): 8
Special features: Factor 1, Resistant to magnetic fields, uprox+
Switching element function: NO contact
Switching frequency (kHz): 1.5

Key Features

Electrical connection: Cable with connector
Output function: PNP
Rated switching distance (mm): 8

homeTurck-Shop
Sensors
Inductive Sensors
BI8U-EH16.5WD-AP6X-0.1-RSL4

In Stock
Price Group	E2
List Price	€ 134,86

Item Total€ 134,86
