Inductive Sensor With Extended Switching Distance

BI50-Q80-Y1X

Order ID no. 1008701

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 2
Design: Rectangular

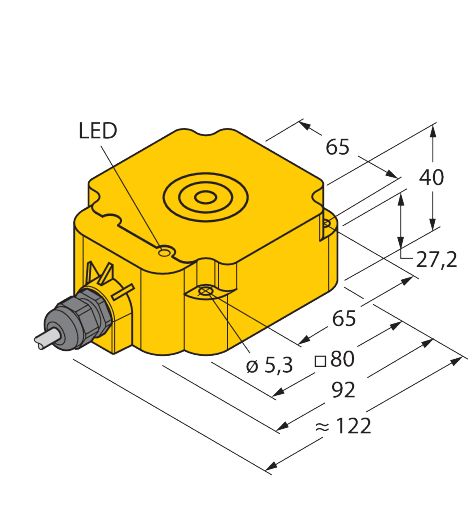

Dimensions: 92 mm x 80 mm x 40 mm
Electrical connection: Cable
Height: 40
Housing material: Plastic
Housing quality: PBT-GF30-V0
Length: 150
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 50
Switching frequency (kHz): 0.1
Width: 240
