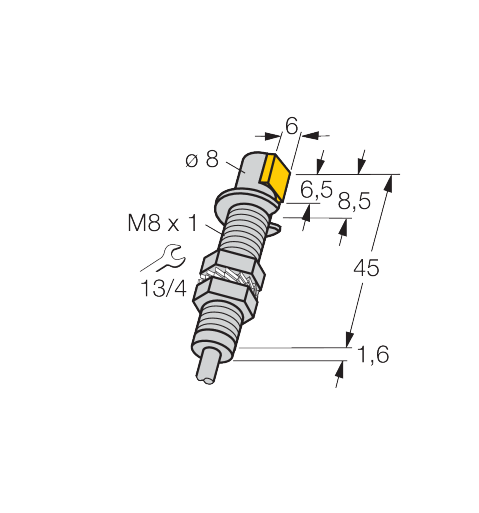

Inductive Sensor

BI1.5-GS880-Y1

Order ID no. 1004401

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 2
Design: Threaded barrel
Electrical connection: Cable
Housing diameter (mm): ⌀ 8 mm
Housing material: Metal
Length: 47
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: POM
Rated switching distance (mm): 1.5
Switching frequency (kHz): 5
