Inductive Sensor

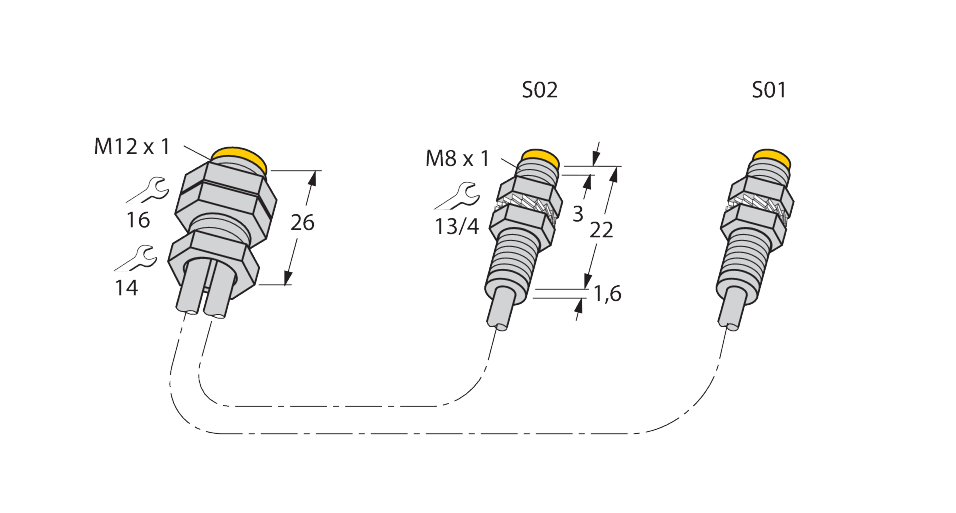

NI3-EG08K-Y1-0.21-FSF4

Order ID no. 1003740

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Cable color: Blue
Cable length (m): 0.21
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Housing material: Metal
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Non-flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF20
Rated switching distance (mm): 3
Switching frequency (kHz): 5
