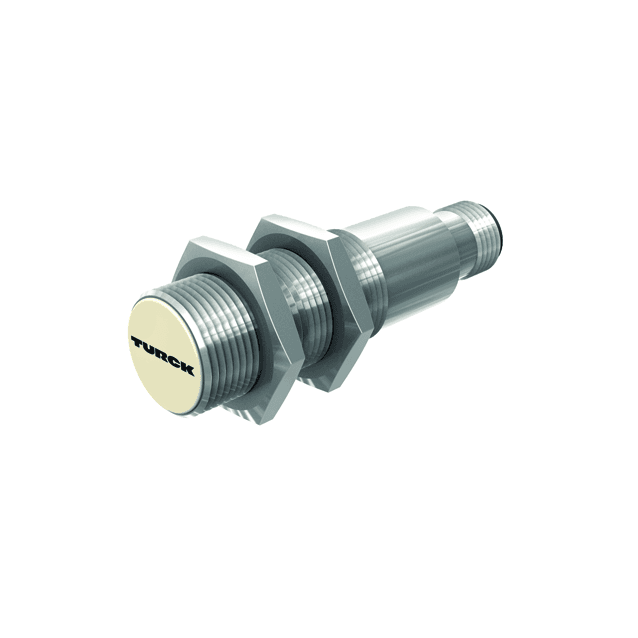

Inductive Sensor For the food industry

BI8U-EM18WD-VN6X-H1141/3GD

Order ID no. 100057373

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Approvals: ATEX II 3 D, ATEX II 3 G
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Connector
Housing diameter (mm): ⌀ 18 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Mounting conditions: Flush
Operating voltage: DC
Output function: NPN
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 8
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
Switching frequency (kHz): 1.5
