BI15R-W20-IOL6X-H1141 | TURCK - Your Global Automation Partner

BI15R-W20-IOL6X-H1141

BI15R-W20-IOL6X-H1141

Thumbnail for BI15R-W20-IOL6X-H1141

Thumbnail for BI15R-W20-IOL6X-H1141

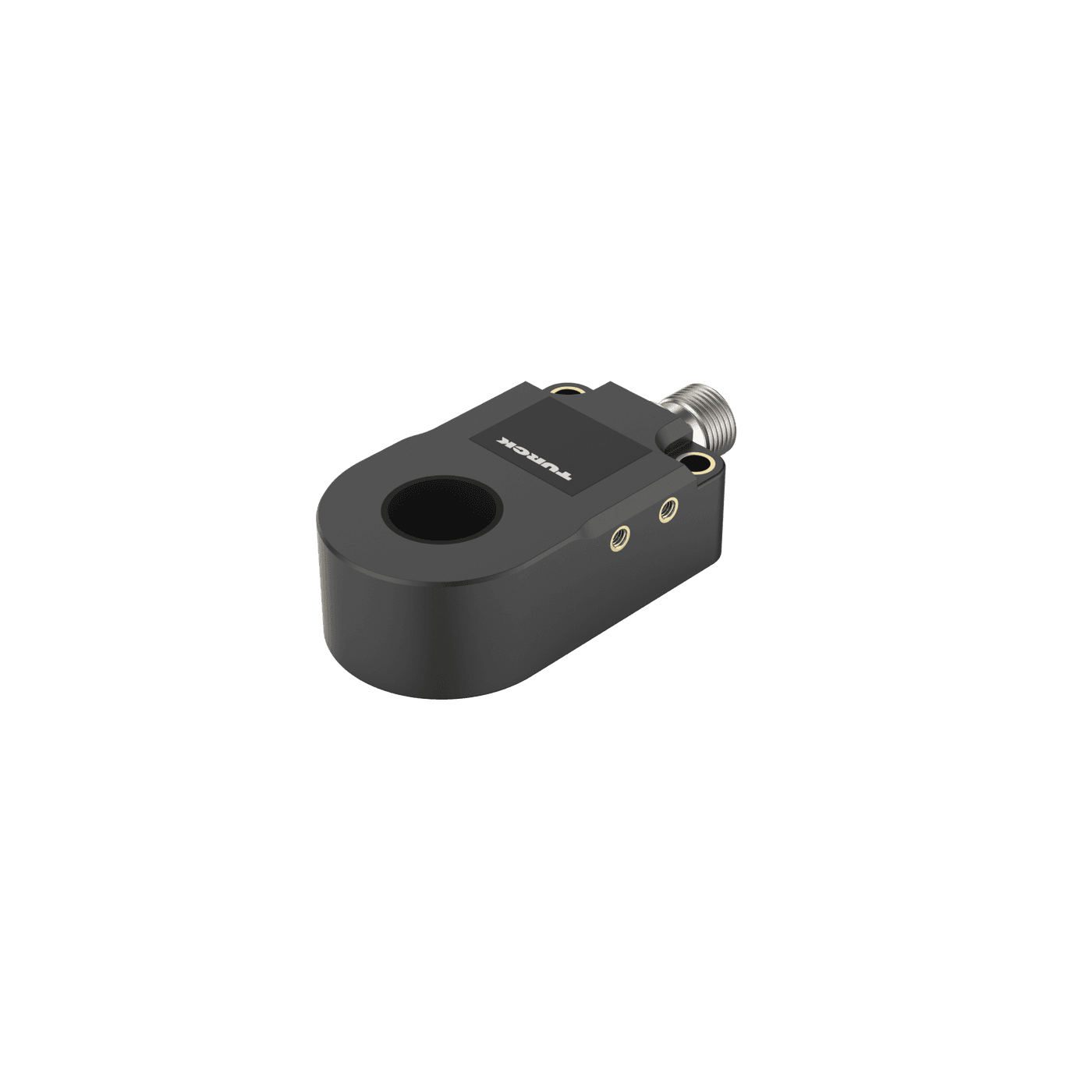

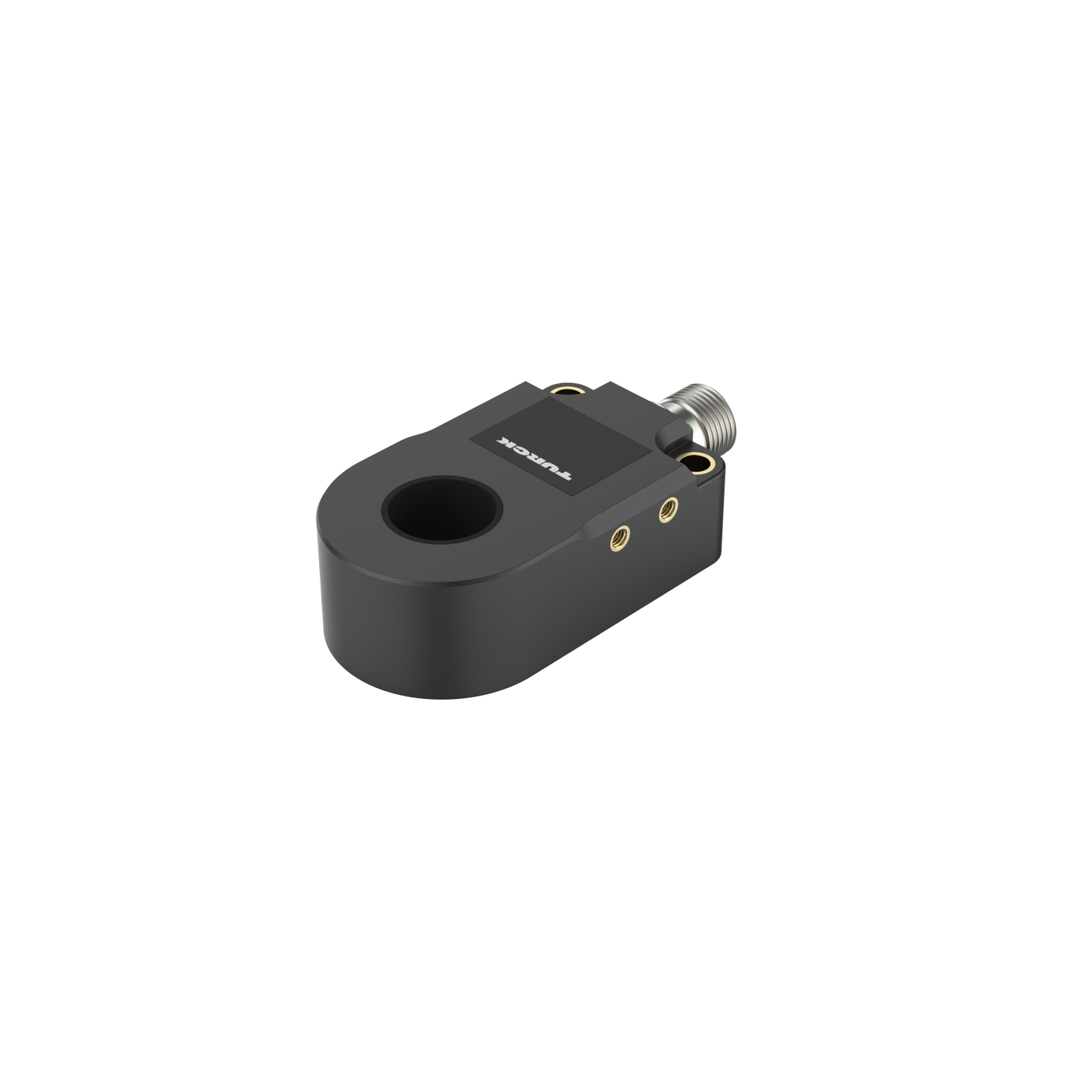

Inductive Sensor Ring sensor

BI15R-W20-IOL6X-H1141

Order ID no. 100053320

homeHome
Loading...

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: cULus
Communication protocol: IO-Link
Connector type: M12 x 1
Design: Ring sensor

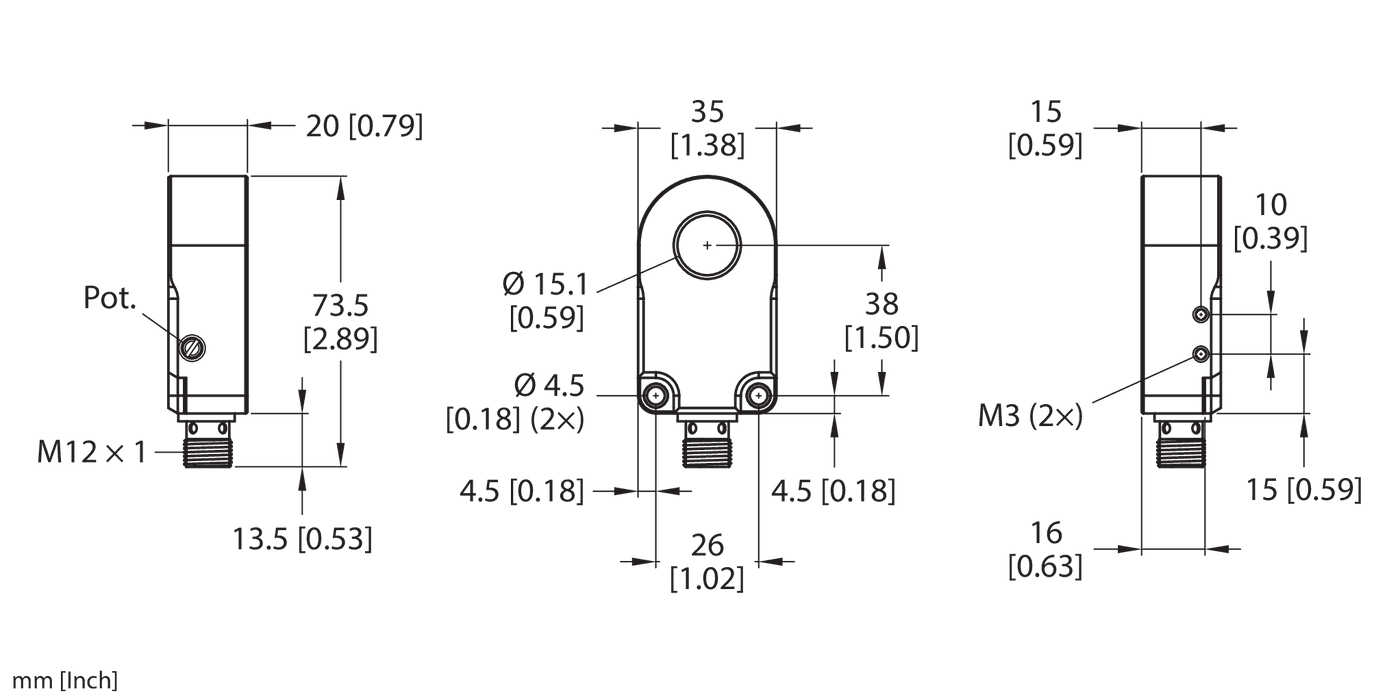

Dimensions: 60 mm x 35 mm x 20 mm
Electrical connection: Connector
Height: 20
Housing material: Plastic
Housing quality: PA, POM
Inside ring diameter D (mm): 15.1
Length: 60
Operating voltage: DC
Output function: IO-Link, PNP/NPN
Power supply connectivity: M12
Protection class: IP67
Special features: Dynamic output, Potentiometer, Static output
Switching element function: NO/NC programmable
Width: 35

Key Features

Electrical connection: Connector
Output function: IO-Link, PNP/NPN

In Stock
Price Group	E1
List Price	€ 229,24
