Inductive Sensor

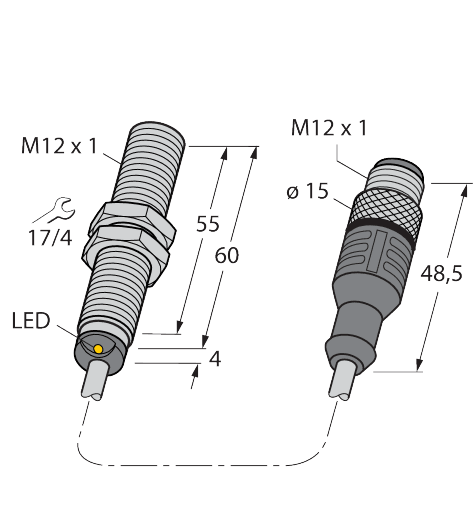

BI2U-MT12E-AD4X-0.3-RS4.23/XOR

Order ID no. 4405048

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): 0
Cable color: Orange
Cable length (m): 0.3
Connector type: M12 x 1
Design: Threaded barrel
Electrical connection: Cable with connector
Height: 10
Housing diameter (mm): ⌀ 12 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Length: 120
Mounting conditions: Flush
Operating voltage: DC
Output function: 2-wire
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 2
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching element function: NO contact
Switching frequency (kHz): 0.01
Width: 120
