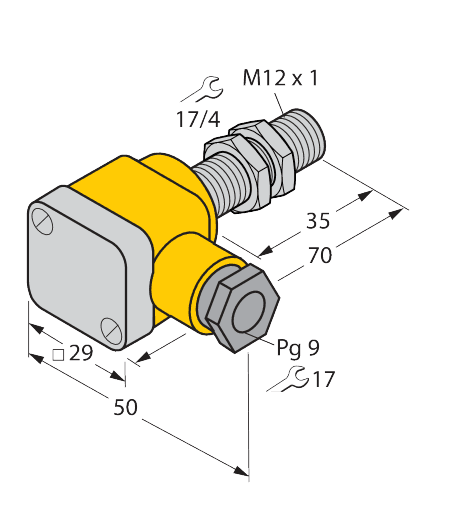

Inductive Sensor

BI2-G12SK-Y1/35L

Order ID no. 10196

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 1 G, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Design: Threaded barrel
Electrical connection: Terminal chamber
Housing diameter (mm): ⌀ 12 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: Chrome-plated
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 2
Switching frequency (kHz): 5
