IMX12-TI02-1TCURTDR-1I1R-CPR/24VDC/CC | TURCK - Your Global Automation Partner

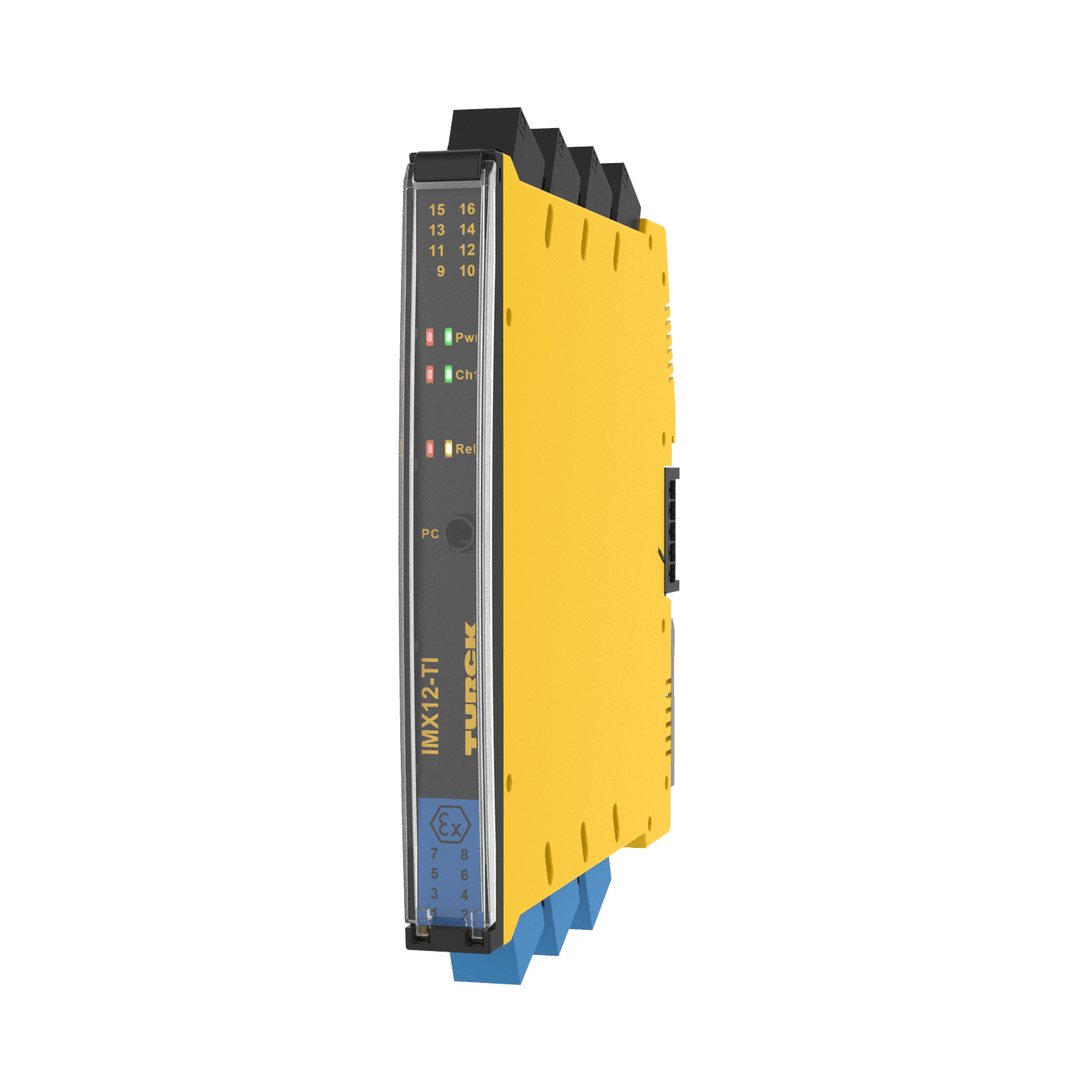

Temperature measuring amplifier 1-channel
IMX12-TI02-1TCURTDR-1I1R-CPR/24VDC/CC
Order ID no. 7580506
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, INMETRO, NEPSI, TR CU
Connection variant
Power bridge with collective fault signal
Current output
In mA
Device type
Temperature measuring amplifier
Digital output
Relay output
Dimensions
120 mm x 12,5 mm x 128 mm
Electrical connection
Removable spring-type terminals, 2-pin
Ex version
yes
Functional safety (SIL/PL)
SIL 2
Height
25
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Length
130
Nominal voltage
Power bridge 24 VDC
Number of channels
1
Power supply
24 VDC
Protection class
IP20
Signal type
Temperature input
Width
130
Key Features
Number of channels
1
Signal type
Temperature input
Nominal voltage
Power bridge 24 VDC
In Stock
Price Group
D3
List Price
€ 333,85
