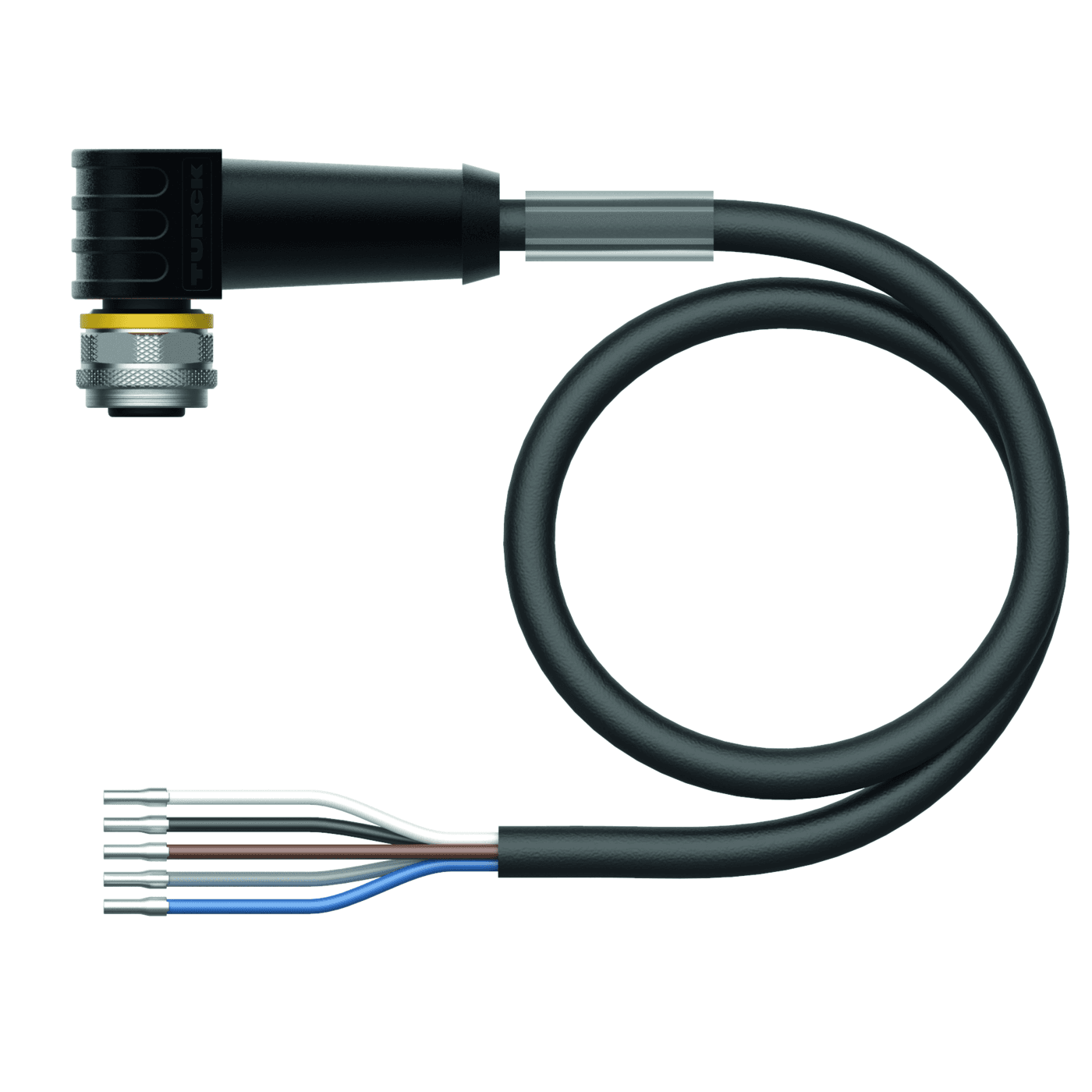

Actuator and Sensor Cable, PUR Connection Cable

WKS4.5T-50/TXL

Order ID no. 6635063

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Application: Signal
Approvals: cULus
Cable color: Black
Cable diameter (mm): 5.7
Cable length (m): 50
Cable quality: PUR
Coding: A-coded
Connector A: M12 x 1
Core cross-section (mm²): 0.34
Coupling nut/screw material A: Brass
Current (A): 4
Design: Connection Cable
Height: 60
Length: 280
Number of Pins: 5
Orientation: Angled
Plug body: Plastic
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Type: Female
Voltage (V): 60
Width: 280
