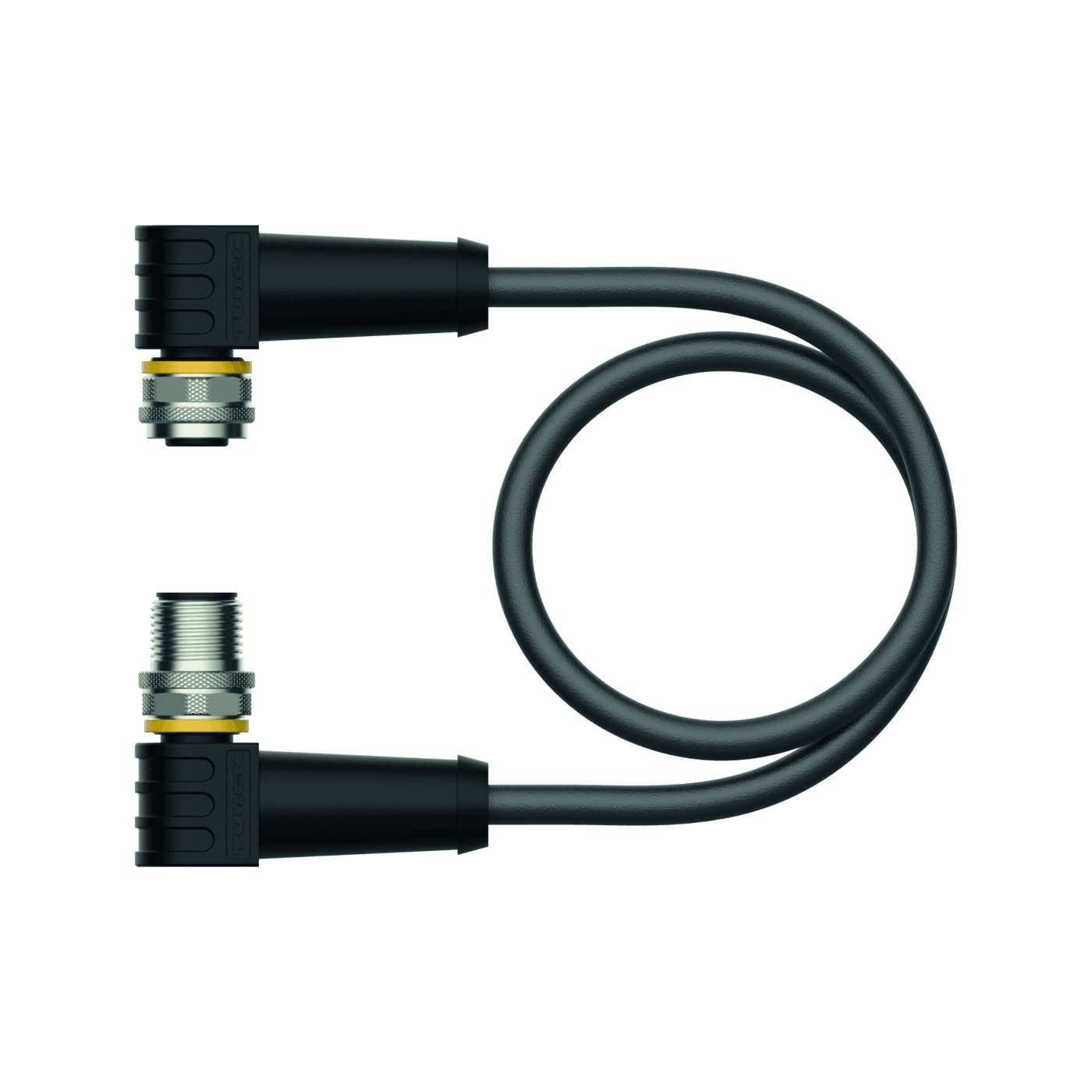

Actuator and Sensor Cable, PUR

WKS4.5T-0.3-WSS4.5T/TXL

Order ID no. 6629015

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Application: Signal
Approvals: cULus
Cable color: Black
Cable length (m): 0.3
Cable quality: PUR
Coding: A-coded
Coding: A-coded
Connector A: M12 x 1
Connector B: M12 x 1
Core cross-section (mm²): 0.34
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Current (A): 4
Design: Extension Cable
Height: 0
Length: 0
Number of Pins: 5
Number of pins: 5
Orientation: Angled
Orientation: Angled
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Type: Female
Type: Male
Voltage (V): 60
Width: 0
